Magento 2 – add new Column to the sales Invoice PDF

We recently had to update Magento’s sales invoices to include an additional product attribute (Pack Size) into the PDF. Without purchasing a large extension this update can be made pretty quickly with some custom code.

As ever with a system of Magento’s complexity this does take a little setup and it’s not just editing a few files.

Step 1 – create new module

As we’re going to be doing a few updates I created an AdminOverrides module.

app/code/Develo/AdminOverrides

First we need to register the module,
app/code/Develo/AdminOverrides/registration.php

\Magento\Framework\Component\ComponentRegistrar::register(
\Magento\Framework\Component\ComponentRegistrar::MODULE,
'Develo_AdminOverrides',
__DIR__
);

Create the basic module at

app/code/Develo/AdminOverrides/etc/module.xml

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Module/etc/module.xsd">
    <module name="Develo_AdminOverrides" setup_version="0.0.1">
        <sequence>
            <module name="Magento_Theme"/>
        </sequence>
    </module>
</config>

To override the PDF classes function in an upgrade safe way we must use the Dependancy Injection system,

app/code/Develo/AdminOverrides/etc/di.xml

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
    <preference for="Magento\Sales\Model\Order\Pdf\Items\Invoice\DefaultInvoice" type="Develo\AdminOverrides\Model\Sales\Order\Pdf\Items\Invoice\DefaultInvoice" />
    <preference for="Magento\Sales\Model\Order\Pdf\Invoice" type="Develo\AdminOverrides\Model\Sales\Order\Pdf\Invoice" />
</config>

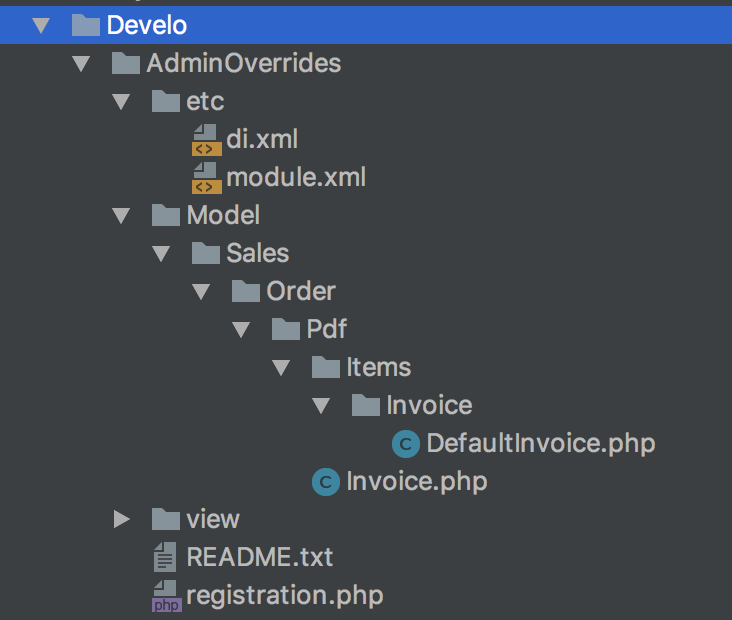

Here’s the final file structure of the module.

Then in your local files override just the functions that you need. In my case it was

• The _drawHeader(\Zend_Pdf_Page $page) function of Magento\Sales\Model\Order\Pdf\Invoice
• The draw() function of Magento\Sales\Model\Order\Pdf\Items\Invoice\DefaultInvoice

Just define your call to override the original class and override just the functions you need.

<?php
namespace Develo\AdminOverrides\Model\Sales\Order\Pdf;

/**
* Sales Order Invoice PDF model
* @SuppressWarnings(PHPMD.CouplingBetweenObjects)
*/
class Invoice extends \Magento\Sales\Model\Order\Pdf\Invoice
{

    /**
     * Draw header for item table
     *
     * @param \Zend_Pdf_Page $page
     * @return void
     */
    protected function _drawHeader(\Zend_Pdf_Page $page)
    {
